The completion of the circuit relies on proper grounding. Much like water runs downhill, electrons move towards a positive charge such as the soil (think lightning strikes), or the earth terminal on the fence energizer. You should figure out the reason why you are installing the fence in the first place, but also the resources you have to build it properly.
fence electric system diagram earth fencing schematic energiser dry soil earthing ground rod return distance installing effective improve conditions suggestion For this post, you should use a special corner insulator, run the wire through it, and tie it into a special high-tensile knot. In most cases, pipe or rebar can be used. To ensure ground rods come in contact with enough soil moisture to complete the circuit, best practice is to install 90 cm (3) of ground rod below the water table for every joule of output provided by the energizer. The most commonly used wire for permanent long-distance fences is the high-tensile steel wire. Then, pull the wire line to the next post and connect it to the insulator. Often an animal touching a hot wire will not complete the circuit. One common mistake beginners make is using a household-grade wire. Since earth provides half of the electric field circuit, it is crucial to have a properly installed ground circuit. endstream
endobj
startxref
Youll also want to consider your budget, When working onground rod installationfor your electric fence setup, there are two major considerations that will determine the effectiveness: 1. Available in 18" and 3' lengths.

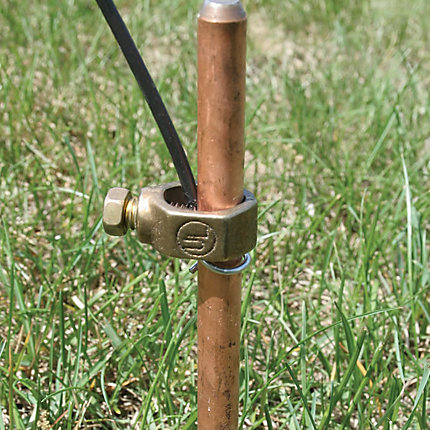

electric a655 gallagher ground complete fence rod kit Remember to strip the end of the wire so the metal is exposed when clamping it to the rod in order to establish a connection. Rutgers Cooperative Research & Extension: Portable Electric Fencing for Preventing Wildlife Damage, University of California Division of Agriculture and Natural Resources: Intermountain Irrigated Pastures and Mountain Meadow Series, 9 drought-tolerant plants for any outdoor space, How to Install a Residential Grounding Electrode, How to Install a Vegetable Garden Electric Fence. These can be found at many hardware stores. You can power it from different sources, and the most common is a 110V AC power outlet. Most grounding rods are made from galvanized steel or copper and it is important that the type of wire used to connect the energizer to the ground rod be identical to the rod.
For example, wolves can easily go under the fence placed at the nose level of a cow. Continue
installation ground wire satellite dish install If not enough ground is used, only a partial amount (not full strength) of the pulse will be returned to the energizer. A sledge hammer, T-post driver, or hammer drill can be used to install the rods into the soil. The charge continues through the earth and to the grounding rod. If youre getting a fence on a straight flat surface, theres no reason to place posts closer than 15 feet. For this reason, it's important to place grounding rods as far away as possible from utilities.
fence electric grounding tips rod ground rebar zarebasystems importance fencing ensure potential reach try its Its a great conductor and lasts the lifetime of the fence, so you dont have to replace it frequently. October 6, 2020, Benefits of Electric Fencing For Your Cattle
Loosen, but do not remove, the wing nut on the ground connection on the portable electric fence. Best Electric Fence Battery of 2022: Top 5 Exclusive Picks. This can be accomplished by connecting multiple ground rods in a series, or by using longer ground rods. This has led to many fences being built with alternating hot and ground wires, called a ground-return system. Learn more , MondayFriday: 7am5:30pm CT (JanuaryDecember), Allow 3 ft of ground rod per joule of energy output, In dry/sandy soils, use ground rods long enough to reach moisture. After youve confirmed the energizer is turned off, you can connect the other end of the electrical wiring to the ground terminal on your energizer. Use the proper type of grounding rod. Your choices in electric fence post installation will be largely based on what critter youre trying to contain. Properly grounding anelectric fenceis essential in keeping the fence in good working order. June 26, 2013. hWmo8+~qU%Z+voUtQ>K#to;!at'd2pF8S4pi3$ 9 9l
Drive your rod into the ground to the point where there are only two inches left. When only charged wires run the perimeter of the fence, this is called a one wire system. To have an effective electric fence, you need to have a power source that will feed the electricity into the charger. This article was published by Michigan State University Extension. For ground wire, most people use tube insulators, which are basically sleeves you put on the wire and prevent the loss of energy. As I already mentioned, there are different types of wires you can use for your electric fencing system. Ontario One Call can be reached at 1-800-400-2255 or online at www.on1call.com. I encourage you you to watch our Grounding Video to explain in more detail how to ground your electrical fence.
rod ground copper fence grounding kit rods electrical electricity earth zareba circuit animal shock path passes soil sectional through into Therefore, contrary to the popular belief, it is these animals that require larger energizers and higher voltage shocks than, for example, cows, horses, or even bears. Older Post And the last thing you need is the insulated hook-up wire (10-14 gauge). These rods should be about 10 feet apart and should be placed at the start of the fence.Grounding rods can actually interfere with phone service as well as electrical lines that may be located on the property.
fence grounding fencing easy electric rods ground test system endstream
endobj
89 0 obj
<>/Metadata 17 0 R/Outlines 34 0 R/Pages 86 0 R/StructTreeRoot 45 0 R/Type/Catalog/ViewerPreferences 106 0 R>>
endobj
90 0 obj
<>/MediaBox[0 0 612 792]/Parent 86 0 R/Resources<>/ProcSet[/PDF/Text/ImageC]/XObject<>>>/Rotate 0/StructParents 0/Tabs/S/Type/Page>>
endobj
91 0 obj
<>stream
You are basically hooking some of the wires to the positive side and some of the wires to the ground opposite. The charger then transforms the electricity into high voltage pulses and, through the fence terminal, pushes the pulses into the fence wire. In addition to spacing out multiple ground rods for the fence, ground rods also need to be more than 23 m (75) away from any other grounds, waterlines, or utilities on the farm. If you want to keep the gate opening non-electrified, you can bury the isolated hook-up wire under the gate and connect it to the lowest electrified wire on the fence using fence taps. Basically, it is always better to overpower your fence than under-power it because, over time, the soil drainage and vegetation will affect the voltage, either way, so you want to at least have a good starting point. The second mistake is not taking care of the vegetation. MSU is an affirmative-action, equal-opportunity employer, committed to achieving excellence through a diverse workforce and inclusive culture that encourages all people to reach their full potential. But it all depends on the posts you have.
fence electric grounding installation rods installing rod system The fence hook-up wire should be at least 20,000 volts or higher. %%EOF
This is not enough to properly support the electric fence. JavaScript seems to be disabled in your browser. Ontario One Call needs five business days notice, but will arrange for someone to come out to the farm and identify buried infrastructure that may interfere with the fence grounding system. 2022 Woodstream Corporation, Inc. All Rights Reserved. support posts.
Before anything else, what you want to do is mark the spots where you will place the ground rods.
fence ground electric rod premier1supplies installation pos neg use However, it is a short-term solution that wont contain fast-moving livestock, let alone repel wildlife. There are snap-on models and screw-in models. High vegetation that is continually touching your hot wires drains the power line and causes the shock to be significantly less effective. When working onground rod installationfor your electric fence setup, there are two major considerations that will determine the effectiveness: Dry soil simply cannot conduct electricity in a way that is going to effectively run your fence.
When an animal touches the fence, the circuit is closed, allowing the electric current to flow from the energizer, through the fence wires, through the animal, into the soil moisture, to the ground rods, and back to the earth terminal on the energizer. Galvanized rods will last longer than copper ones because they are protected from corrosion.
fence electric ground install cattle wire installation rod diagram wiring If you order now, we will ship it to you as quickly as possible after it arrives. If the animal and the ground terminal of the charger are not sufficiently grounded, the path of electric current cannot be completed, and the animal will not feel the shock. They work in a way that the solar panel collects the energy from the sun and powers up the battery, which is then used to power the charger.
Do not use unshielded wire to make Not all owners of buried infrastructure are registered with Ontario One Call, and privately-owned companies may need to be contacted individually. To learn more about the differences between a one-wire and a two-wire system, skip to the sections below. Using the post driver or a hammer, drive the ground rods deep into the ground, leaving only two inches above the ground for the wire connection. Now, when it comes to the number of strands, you need at least one strand of electrified wire installed at the nose height of the animal you are containing. Some farmers have had success in these situations with the ground plates used to ground houses. hI"`R]6'D02!B`DH_*A B Once you install posts, the next important segment is to attach wire insulators. Please check the item # you entered. Hot wires are connected to the output of the energizer, while ground wires are connected to the ground rods. When you add more grounding, the amount of electron receptors are increased. We recommend 4"x4" square or 5"+ round or larger pressure treated The soil where you will install the grounding rods should be moist and at least 50 feet apart from any other grounding system, be it water pipes or electricity posts. Depending on what livestock youre keeping in, you may require multiplegrounding rods, based on the amount of current youre sending out from yourcharger.
October 7, 2020, Replacement batteries for Solar Chargers If the earth is frozen or snow-covered, it can be difficult to achieve electrical contact; snow contains a lot of air, and ice holds onto electrons more tightly than liquid water. The two-stranded system allows the animal to complete the circuit by touching a charged wire and a ground wire at the same time. She has written for publications including "Seattle Weekly" and the Rodale Institute's New Farm online magazine. Metal and water are good conductors of electricity because they hold electrons loosely and are relatively dense, which enables electric current to flow through them. If you have a small area, with one or two strands of wire, a one wire system is what you should use. For example, goats and sheep have smaller hooves, so they dont ground out well. 2022 Comparison, Who Will Take the Crown: Case IH vs. New Holland 2022 Comparison, Mahindra vs. Kioti: Whos the Best? Fry earned a certificate in permaculture design from Slippery Rock University of Pennsylvania in 1997. These should be set a minimum of 3 ft. in the ground with concrete.
These rods must be installed at least 10 feet apart from each other. So, what you want to do is take a voltmeter, place it on a ground rod, and it shouldnt read more than 0.04 kilovolts. Newer Post . reduce the possibility of injury.
fence electric wire circuit grounding fencing ground rod installation electricity It can be because they used a single rod, for example, or they did not bury it deep enough. Learn More .
ground rod grounding rods clamps clamp solar earth electric wire ft fence cable grid lug system systems grounded conductor included This is especially true in relation to phone lines, water systems, milking sheds, or other areas that might be sensitive to inducing electrical charge.
Ground rods need good contact with the soil to work effectively. or Also, the wire that goes under the gate should be in a tube insulator to prevent water damage or loss of electric current. Connect the insulated cable back up the the charger box, according to manufacturer instructions. Make sure to take the gate into consideration, water sources, and the movement of your livestock.
electric fence noise fences clicking sounds operation normal gate makes
Then, you should also consider grazing. It keeps the wild animals away and livestock securely contained. If the fence is not working properly, the animal will not be able to feel a shock.There are a number of things that can be done to ensure that electrical fences work properly. Ontario One Call offers a call or click before you dig service, allowing landowners to request infrastructure location to identify where publicly-owned utilities are buried.
In most of these cases, the grounding is affected by either very dry or very wet weather.
