Use a small screwdriver to work the O-ring into the groove. Use a toothpick to work the O-ring out of the groove and up out of the Bonnet. Do you have to drain the filter before opening up the valve body? All returns must be approved by Pool Guy Supply, Inc. and have a RMA number for credit to be given to an account. REMOVE BONNET NUT - Unscrew the Bonnet Nut counter-clockwise to free it from the Body Assembly.
Please contact usto request a RMA number and give us a detailed description as to why you are looking to return the item. See our guides on "How To Operate a Hayward Slide Valve" and "How To Replace the Hayward Slide Valve Handle and Piston Assembly". Posted: 6/2/2014.
Posted: 8/25/2015, InyoPools Product Specialist Dennis R.
(smaller id bottom and larger ID in the middle? Great job. Then lubricate the O-ring with a silicone or Teflon based lubricant as identified above. Everything Listed is in Stock Unless Otherwise Specified on the Product Page - Free Shipping on Most Orders within the Continental US & Orders Over $100.00. LUBRICATE 0-RING - Inspect the O-ring for wear or damage. a review, Hayward Valve Kit SPX0710X32 Sand Filter 1.5 in, Hayward Vari-Flo Valve SP0715X62 6 Positions 2 in SAND, Hayward Selecta-Flo Valve for DE filters Model SP0740DE, Hayward Vari-Flo SP0715XR50 6 positions DE filter 2 in, Vari-Flo Multiport Valve for DE filter 1.5 in. repair installation and remodeling. TURN POWER OFF - Make sure that power to the pump is turned OFF before you open up the Slide Valve. I got all the o rings replaced, but I couldn't figure out the little tiny one. Then use an awl or small punch to insert the Pin the rest of the way. Your payment information is processed securely. Upon receiving your request, one of our representatives will get back to you as quickly as possible. We do not store credit card details nor have access to your credit card information. Pool Guy Supply, Inc. will cover the cost of return shipping for items weve sent by our mistake. Ensure that these line up when you insert the Shaft Assembly.
Upon receiving your request, one of our representatives will get back to you as quickly as possible. Is this something other than the O-rings? To keep the O-ring from going pass the groove as you are placing it, slide the Shaft into the Bonnet up to the groove. and actual shipping charges may apply. SEPARATE HANDLE AND SHAFT FROM BONNET - Slide the Bonnet off the Shaft. That was very helpful. This can be tricky. The original handling charge is not refundable.Items must have original packaging, warranty cards, and ALL owners manuals to be returned - without this - they are not returnable. Return shipping costs are the customer's responsibility. Return shipping costs are the customer's responsibility.
hayward
Please contact usto request a RMA number and give us a detailed description as to why you are looking to return the item. Be sure to support the shaft as shown so you don't bend it. Posted: 4/6/2017, InyoPools Product Specialist Dennis R.
Anonymous (drain filter) - No, you do not have to drain the filter before opening up the valve body. REPLACE SHAFT ASSEMBLY - When you slide the Shaft Assembly back into the Valve Body Assembly, note the notch in the Body Assembly and the lug on the Bonnet.
Posted: 7/29/2016, magnums
If you feel you have a defective product, please contact us and/or the manufacturer directly to resolve the issue before attempting to return the product to Pool Guy Supply, Inc.Any products claimed as defective and returned to Pool Guy Supply, Inc. are subject to inspection. TheHayward Filter Control Slide Piston Assembly, has four O-rings, three on the outside of the Assembly and 1 inside the assembly.
good information. Hand tighten. However, when you open up the valve, the filter will probably drain to a lower level because you have broken the pressure seal. Take the assembly out of the Valve Body Assembly to check it and the inner O-rings. LOCATE AND REMOVE O-RING - The small Shaft O-ring in located in a groove inside the Bottom end of the Bonnet.
Pool Guy Supply, Inc. will cover the cost of return shipping for items weve sent by our mistake. O-Ring sizes - Thank you for your feedback. We will promptly refund you in full or exchange the item for the right product if returned undamaged to Pool Guy Supply, Inc. within 10 days of receipt. Replace if necessary. In the case of a misprinted price, your order will not be filled and money will be refunded in full. the two thick o-rings are dif sizes.

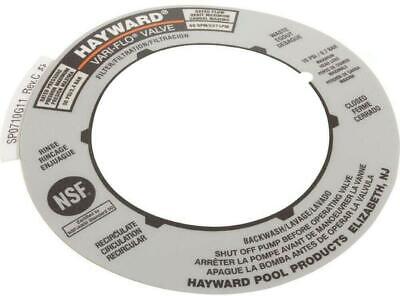

filter hayward valve sand label multiport pool plate replacement decal sticker 50mm filters labels Posted: 10/24/2014, Anonymous
Sign up for our newsletters, and don't worry they're
The shaft will not rotate for the backwash. All returns must be approved by Pool Guy Supply, Inc. and have a RMA number for credit to be given to an account. PULL OUT SHAFT ASSEMBLY - Pull straight up on the Handle to lift it and the Shaft Assembly out of the Body Assembly. Posted: 8/1/2016, MK
SEPARATE HANDLE AND SHAFT ASSEMBLY FROM PISTON - The Handle and Shaft Assembly out of the Piston. If Pool Guy Supply, Inc. ships you the wrong product by our mistake, please contact us to notify us of the mistake. Copyright 2022 INYOpools All rights reserved, How To Replace the Hayward Slide Valve Internal Shaft O-Ring. Hayward Slide Valve for DE filter - Backwash valve for use with Pro series side mount filters. Put a board under the shaft to support the impact so you don't bend the shaft. Special orders, electronics, and products shipped by freight truck line are non-returnable, regardless of whether or not they are defective. Posted: 8/30/2014, davey
InyoPools Product Specialist Dennis R.
awesome. Statements of compatibility here are 100% guaranteed by Pool Guy Supply, Inc. and are not attributable to or made by Hayward or any other original equipment manufacturer (OEM) of products sold on this website. After you have punched the Pin most of the way out, grab the other end with a pair of pliers and pull it out the rest of the way. The original handling charge is not refundable. SLIDE SHAFT INTO BONNET - Slide the Shaft and Handle the rest of the way into the Bonnet. If the product is determined to be free of any defects, there will be a $15.00 charge required to return the product to the customer.Items damaged in transit by the delivery carrier require a copy of the carriers paperwork clearly notating that the item was damaged when it arrived. Items must have original packaging, warranty cards, and ALL owners manuals to be returned - without this - they are not returnable. HAYWARD 2"" SKT SLIDE VALVE ASSEMBLY SP0410X602S, Recreation Warehouse (Leisure Bay Manufacturing), HAYWARD 2"" SKT SLIDE VALVE ASSEMBLY SP0410X602S, Hayward 16-1/4" Long Flex Tube Assembly (#ECX1032), HAYWARD 3" MULTI VALVE KIT COMMER. REPLACE DRIVE PIN - With the holes aligned, tap the Drive Pin partially into the Shaft to make sure it is aligned correctly. The following valves are used with the Hayward Micro-Clear and Pro-Grid DE Filters, American Best Pool Supply currently accepts Paypal, Visa,
To access this internal O-ring for maintenance or repair, you will have to partially disassemble the Assembly. PULL OUT DRIVE PIN - The Drive Pin is in tight so you will have to punch it out most of the way with an awl or small punch. replacing the o rings solved my leaking backflush issue. This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply. You are the only ones that have this much detailed info.
sta rite valve slide plastic parts valves pool inyopools diagram SP0410X Series Slide Valve and SP0740DE 2 Inch Selecta-Flo(TM) Valve. REPLACE O-RING - Place the O-ring back in the groove.

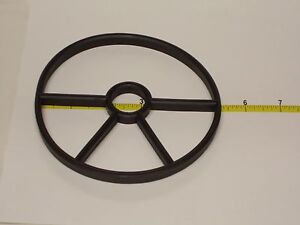

gasket spider rite valve flo sta pentair backwash replacement crystal
Special orders, electronics, and products shipped by freight truck line are non-returnable, regardless of whether or not they are defective. MK - Something may be damaged in the Slide Valve Handle and Piston Assembly.
SECURE BONNET NUT - Screw the Bonnet Nut clockwise back onto the Body Assembly. pictures were very helpful. FOR SAND HCV30798, Hayward 100W 120V Halogen Hayward AstroLite II Bulb (#SPX0591H), Hayward 1/4" MPT Vent Filter Pack With 8' Tube And Fittings (#VRX100F), Hayward Slide Valve Handle/Piston Assembly (#SPX0410BA), HAYWARD SPX715X32 2"" VERTICAL VALVE ASSEMBLY, HAYWARD SPX0724D ASSEMBLY NUT FOR 2"" BALL VALVE. All returns must be made within 30 days of receipt.
In the case of a misprinted price, your order will not be filled and money will be refunded in full. I will add this information in the guide that addresses the external O-rings: ". If Pool Guy Supply, Inc. ships you the wrong product by our mistake, please contact us to notify us of the mistake. Posted: 10/27/2014, Anonymous
This guide shows you how to access the Internal Shaft O-ring.Click here to view Hayward slide valves. 0 reviews, Write
This slide backwash screws on to Hayward filter fittings for a fast install. All returns must be made within 30 days of receipt.All returns are subject to a 20% restocking feeand actual shipping charges may apply. Posted: 5/19/2017, Anonymous
Thank you for the very useful information. The customer is responsible for the cost of shipping a return item back to us, and all returns must be clean, unused and in resalable condition, including original packaging. The customer is responsible for the cost of shipping a return item back to us, and all returns must be clean, unused and in resalable condition, including original packaging. )The larger but smaller thickness ring on top.The bottom 2 rings are close in size. We will promptly refund you in full or exchange the item for the right product if returned undamaged to Pool Guy Supply, Inc. within 10 days of receipt. Model SP0710XR50, Local
Posted: 5/20/2017, Anonymous
If you feel you have a defective product, please contact us and/or the manufacturer directly to resolve the issue before attempting to return the product to Pool Guy Supply, Inc. Free Shipping on Most Orders within the Continental US & Orders Over $100.00, Click here to find out more about our 30 Day Return Policy, Get in touch with our excellent customer support team. Items damaged in transit by the delivery carrier require a copy of the carriers paperwork clearly notating that the item was damaged when it arrived. instructions for how to enable JavaScript in your web browser, How To Maintain a Hayward Filter Control Slide Valve. SLIDE SHAFT INTO PISTON - Slide the Shaft and Handle into the Piston and rotate the Shaft so that the hole at the end of the Shaft lines up with the hole in the Piston. Mastercard and American Express through the Internet and Telesales.
